Please read instructions fully, and if you have any questions please contact us.

1. Remove the alpine bow. (This is the small non-rubberized bow above the rear bed) A rubber mallet may be needed. Install the straps with the loop on the alpine bow. Then re-install the alpine bow.

2. Fit the front lip of the surrey top into the header bar above the windshield (“A” pillar)

3. Pull the back of the surrey top towards the rear roll bar (“D” pillar) and snap all five straps with NO tension. Place your hand on the back flap and help roll the canvas as you tighten the adjusting buckles. Start at the center and work outward this will help with the longevity of the straps and buckles. Do not over tighten the straps. This will cause the rear of the top to “scallop” along the rear edge. We have designed this product to have a nice clean uniform fit. So over tightening is not necessary.

4. Wrap the corner straps from the outside of the horizontal bar to the inside of the “D” pillar around the back and through the buckle.

5. Loop the alpine straps through the buckles and adjust as necessary.

6. Bring the sides of the bikini top over the outer roll bars, then back in and over the top of the horizontal bar (above each door) and seat the four snaps on each side.

7. The straps with Velcro should hang to the outside, and wrap around the bar that

runs from one side to the other, and is located behind the front seats.

8.Wrap the flap on the “B” pillar (above the driver and passenger) which also has Velcro. This will stop the to from flapping.

Installing the Badger Surrey Top

Installation of the Strapless Bikini Top

Please read instructions fully, and if you have any questions please contact us.

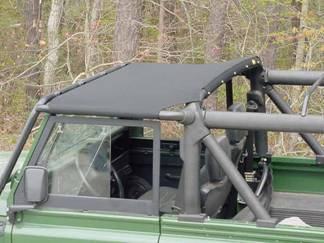

1. Fit the front lip of the bikini top into the header bar above the windshield.

2. Pull the bikini top back over the rollbar. Pull on the rear flap to seat the female snaps onto the male snaps on the back of the rollbar. Then wrap the flap around the roll bar and Velcro together.

3. Bring the sides of the bikini top over the outer rollbars, then back in and over the top of the horizontal bar (above each door) and seat the four snaps on each side.

4. Attach the straps on each upper corner.
