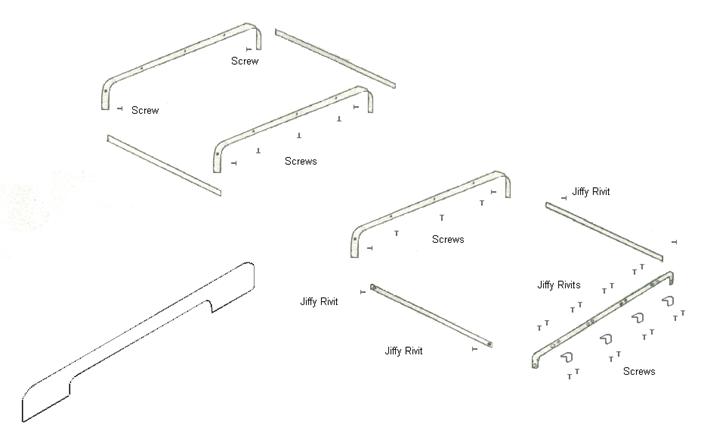

Front section-



1) Slide the front and rear bows into the sleeves. Stretch the sleeves 1/8" past the end of the bow and staple the end of the sleeve to keep it tight.



2) Slide the side rails in place and rivet them to the front and rear bows. There are (4) brackets that get riveted to the front bow at this point.



3) When fitting the front section, start with the center screw on the rear bow and then install the other screws working towards each end.



4) Stretch the front bow forward and start screwing the four tabs to the galvanized edge of the roof above the windshield. Sometimes the tabs that are screwed to the roof bend and can be corrected by adding a 3rd screw. The front bow might need to be adjusted when you fit the visor boards (which are the 2 metal pieces that covers those brackets).



Rear section-



1) Slide the front and rear bows into the sleeves. Stretch the sleeves 1/8" past the end of the bow and staple the end of the sleeve to keep it tight



2) Screw the rear board to the rear bow and mount the brackets to the roof with screws.



3) Stretch the front forward, screwing in the center screw and working outwards. Now the side bars can be slid into the side sleeves.

Fitting the Series Land Rover Headliner kit

Swb. Standard
